Pallet Wrappers

Easypak are proud to launch their new range of semi automatic pallet wrappers. We have several years of experience in designing and installing automatic wrapping systems and the new additions complete the range. Built to modern and robust designs using high quality components these machines guarantee many years of reliable safe and efficient service. Whatever your requirements we have the machine to suit.

X200 Core Brake Semi automatic Pallet Wrapper

  • Max load 1500kg
  • Max load height 2000mm
  • Turntable diameter 1500mm
  • Soft start turntable adjustable for speed (0 – 12 rpm)
  • Indexing turntable for easy unloading of wrapped pallet
  • Fixed speed film lift carriage
  • Film tension is easily adjusted via a mechanical brake
  • Film lift carriageĀ has a photoelectric sensor to automatically detect
    top of load
  • Easy to use PLC control with variable wrap pattern
  • Requires a 10A, 50Hz supply
  • Available in 220-240vac single phase and 380-415vac 3 phase
    versions

X400 Power Pre Stretch Semi Automatic Pallet Wrapper

  • Max load 2000kg
  • Max load height 2250mm
  • Turntable diameter 1650mm
  • Soft start turntable adjustable for speed (0 – 12rpm)
  • Indexing turntable for easy unloading of wrapped pallet
  • VariableĀ speed film lift carriage
  • Film lift carriageĀ has a photoelectric sensor to automatically detect
    top of load
  • Easy to use PLC control with variable wrap pattern
  • Power pre stretch carriage with easily adjustable film feed rate
  • Requires a 10A, 50Hz supply
  • 240vac single phase operation

X200 / X400 Dimensions

  • The Dimensions for the X200 and X400 ranges are shown
    on the diagram
  • Height 2550 mm
  • Width 1800 mm
  • Length 2629 mm

    Can be loaded via a ramp or sunk into the floor for direct loading

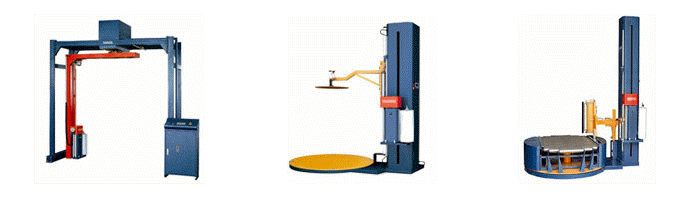

Automatic Machines

As well as the semi automatic machines we are also able to offer the full range of automatic machines for higher volume users. We can design and manufacture a machine to suit your requirements, please contact us for further details.
